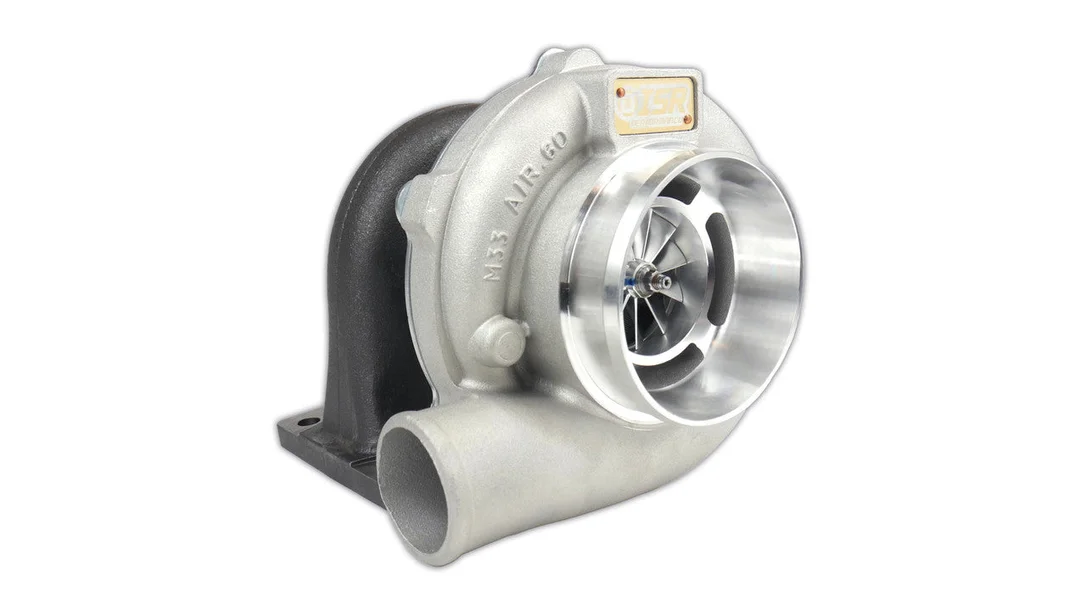

Garrett GT2860R Dual Ball Bearing Turbocharger

Description

Part #: grt836026-5005S

250-360hp capability
Displacement range: 1.8L to 3.0L
Internally wastegated . Includes wastegate actuator.
Bolt-on turbo for Nissan RB26DETT

CHRA Specs
-Dual Ball Bearing
-Oil and water-cooled bearing housing
-M14x1.5 water ports

Compressor Specs
-0.60 A/R compressor housing 2.08″ 2-bolt inlet 1.5″ 2-bolt outlet
-62-trim compressor wheel 1.85/2.36 47.2mm inducer

Turbine Specs
-0.64 A/R turbine housing with T25 inlet and compact 5-bolt outlet. This housing is NOT interchangeable with traditional T25 5-bolt outlets
-53.9mm 76-trim GT28 Inconel turbine wheel
